PureBallast 3
Alfa Laval PureBallast 3 is an automated inline ballast water management system for biological disinfection of ballast water. Operating without chemicals, it combines initial filtration with UV treatment to remove organisms in accordance with stipulated limits.
Get total solutions in ballast water management
- Superior performance in any waters – and challenging conditions
- Minimized power consumption
- Easy installation with minimized footprint
- Delivered Connectivity-ready
- Designed and supported for the whole vessel lifetime
PureBallast 3 treats ballast water without chemicals, combining high-performance filtration with enhanced UV treatment. In the UV reactor(s), specially designed synthetic quartz lamp sleeves transmit an extended wavelength spectrum that provides more UV light. Together with the internal reactor design, this ensures optimal UV dosage with very low energy consumption. An expanded range of reactor sizes further reduces power needs in specific configurations.

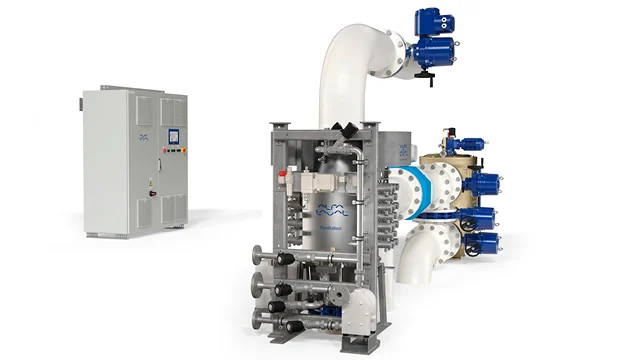

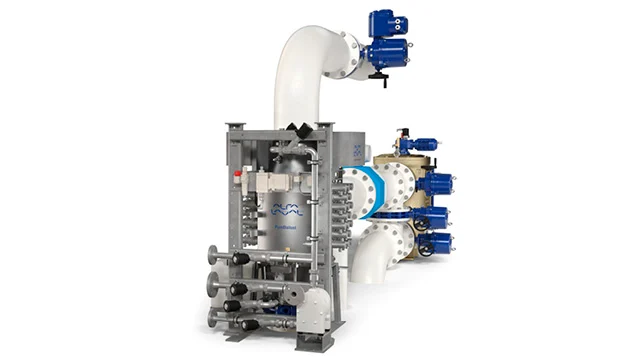

PureBallast 3 Ultra
PureBallast 3 Ultra offers unmatched biological disinfection performance in any type of water: fresh, brackish or marine. An expanded range of UV reactor sizes ensures a close match between PureBallast 3 Ultra and the ballast pump capacity. For certain flows, this reduces power needs by up to 19% over previous systems. System layout is simplified by the smaller design of the upgraded filter, as well by the integration of the Cleaning-In-Place (CIP) unit and pressure monitoring device into the UV reactor module.
Ballast water flows of 32–3000 m3/h
Option: ATEX and IECEX. Zone 1, IIC and T4 with power supply placed in safe zone)
Polger Authorized Alfa Laval Distributor
Polger is an authorized distributor of Alfa Laval equipment and systems for the marine industry. We provide reliable solutions for fuel and oil handling, water treatment, heat transfer and onboard installations.
Ship Parts Ready to Go
Contact Polger to select the right Alfa Laval solution for your vessel or marine installation.
